Peladoras de Ajo – Usa General Garlic Desgranadoras de Ajo

(3) EV-6 Dosing Elevator

Model
ProductionPrice (USD)
TURBO T-50   50 Kg/Hour10,950
TURBO T-100 100 Kg/Hour12,950
TURBO T-150150 Kg/Ho​ur16,950
TURBO T-200200 Kg/Hour22,950


USA General Garlic Corp.  Fabricante de Maquinas Peladoras, Desgranadoras, Lavadoras y Plantas para Procesamiento

                       Industrial plants for peeling garlic


(4) CS-16 Selection Tape​

RecommendedIndustrial
OperationPneumatic Automated
Voltage Available110-220V 60Hz 1Ph / 220V 50Hz 1Ph
ConstructionStainless Steel, Plastic, (food grade)
ManufacturingUSA


(1) ​EV-8 Dosing Elevator​

Recommended
Industrial
OperationElectromechanical
Voltage Available110-220V 60Hz 1Ph / 220V 50Hz 1Ph
ConstructionStainless Steel, Plastic, (food grade)
ManufacturingUSA


AUDIO:

Generales details

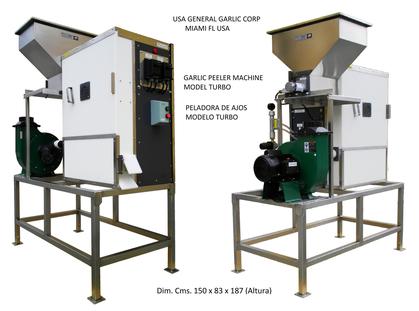

TURBO Peeling Machine

Process description:
Peeling is performed by injecting compressed air dosed by controlled injectors. An Electromechanical dosing moves the product from the hopper to a rotor which turns to the nozzle block where the peel is removed. The waste is sucked and accumulated in an outer bag. The Peeled clove comes out through the discharge channel.
The finished product is undamaged and the process efficiency is 95%.


AUDIO:

General Details

Garlic Peeling: Automated Line

USA GENERAL GARLIC CORP.
BIENVENIDOS

(2) TURBO Peeling Machine​

Num.
Model​​
Name / CapacityPrice (USD)
1EV-8   Elevator Dosing / 50 Kg
6,900
2TURBO Peeling Turbo / Depends Model ****
3EV-6Elevator Dosing 4,900
4CS-16 Selection tape6,900
--------Total Price
**


​USA GENERAL GARLIC CORP.

  • 1 Info no disp Ingles0:05

  • 1 Info no disp Ingles0:05

   Garlic Peeling Machines

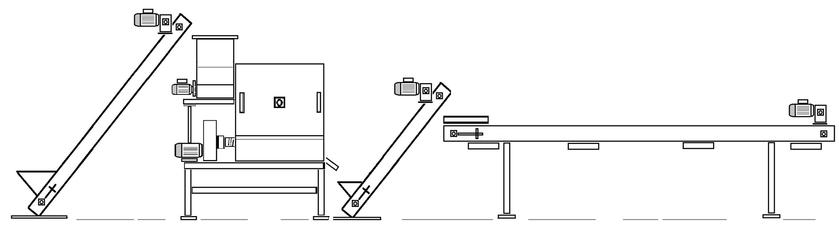

Garlic Peeling: Automated Line                                (Production 50 a 200 Kg hour)

Process description:
The previously separated, dry and clean product is deposited in the hopper of the elevator, elevated and dosed to the peeler, where the peeling is carried out by compressed air and cleaning by means of a vacuum cleaner that sucks the waste.
Then, the peeled product falls into the hopper of a second elevator, which raises it and moves it to the selection belt, where the manual inspection of the clove is performed, thus finalizing the process and obtaining a finished product, clean and without injuries .
The Line of Automated Peeling, allows reduction of labor and time, achieving greater efficiency and profitability in the production.
It is recommended for Medium and Large Producers as well as Processing Plants in general.
