(3) Selection belt CS-16

Num.Model  Name  / ProductionPrice (USD)
1EV-8 Dosing Elevator / 100 Kg /Hour6,900
  2 DGVM-80 SMSeparating machine / 200 Kg Hour8,500
 3CS-16Selection6,900
--------​Total Price
​22,300


AUDIO:

General details

Garlic Separating:

Automated Line DGVM-80 SM

Num.Model  Name  / ProductionPrice (USD)
1EV-8ADosing Elevator / 200 Kg/hour7,900
  2 DGVM-100SMSeparating machine / 400 Kg/hour12,200
 3CS-16Selection belt6,900
--------​Total Price
​27,000


Num.Model  Name / Production Price (USD)
1EV-8AElevator Dosing / 100 Kg/Hour 7,900
  2 DGL-300Separating machine / 600 Kg/Hour 27,500
 3CS-20Selection Belt9,700
--------Total Price
45,100


  • 1 Info no disp Ingles0:05

Description Process:
The separation is vertical by separating rollers and multiple cleaners with speed can be stable or controlled. The separating rollers begin the separation, passes to the cleaning rollers where the final separation of the clove is performed. The tooth falls through the discharge channel. The waste is sucked and expelled to the outside. The finished product is undamaged, clean and the process efficiency is 95%.
It is recommended for Farmers and Garlic Processing Plants for Peeling.

(2) DGVM-100SM Separating machine

(2) DGL-300M

Separating machine

AUDIO:

General details

Garlic Separating Machine Model DGVM

​​Recommended
Industrial
OperationElectromechanical
Voltage Available220V 60Hz 1Ph / 220V 50-60Hz 1Ph y 3Ph
ConstructionSteel for machinery
ManufacturingUSA


AUDIO:

General details

Garlic Separating:

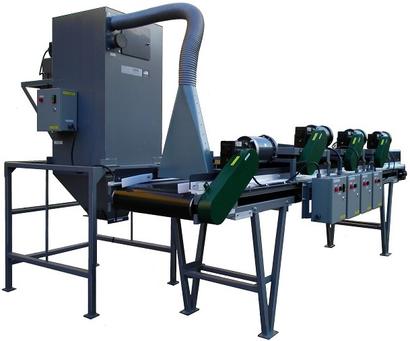

Automated Line DGL-300M

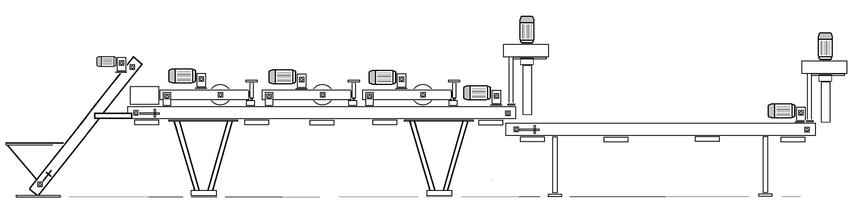

Garlic Separating: Automated Line DGL-300          (Production 600 Kg/Hour)

Process description:
The dry and clean product is deposited in the hopper of the elevator, which raises and doses to the Separating machine, where the separation and cleaning is carried out by means of a vacuum cleaner that sucks most of the waste.
Next, the shredded product falls on the selection belt, where the manual inspection of the clove is performed.
At the end of the selection belt, a second vacuum sucks the final waste, resulting in a clean, non-injured product.
The Line of automated separation, allows reduction of labor and time, achieving greater efficiency and profitability in the production.
It is recommended for large producers, agricultural cooperatives and processing plants in general.

(1)  A-500 Dosing Feeder

(1) EV-8A Dosing Elevator

(3) CS-20 Selection belt

  • 1 Info no disp Ingles0:05
Num.Model  Name  / ProductionPrice (USD)
1A-500A-500 Dosing Feeder / 500 Kg/Hour10,500
  2 DGL-300MSeparating Machine / 800 Kg/Hour29,950
 3CS-20Selection belt9,700
--------​Total Price
50,150


Model DGL

(1) EV-8 Dosing Elevator

​​Recommended
Industrial
OperationElectromechanical
Voltage Available220V 60Hz 1Ph / 220V 50-60Hz 1Ph y 3Ph
ConstructionSteel for machinery
ManufacturingUSA


Model
ProductionPrice (USD)
DGVM-80 SM200 Kg/Hour8,500
 DGVM-100 SM 400 Kg/Hour12,200
DGL-300600 Kg/Hour27,500
DGL-300M800 Kg/Hour29,950


​Industrial plants for Separating of garlic

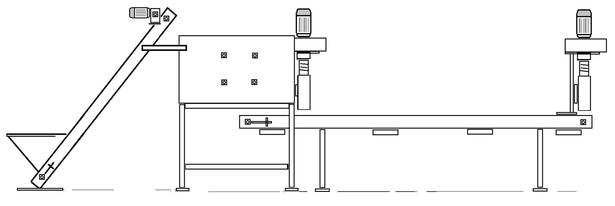

Garlic Separating: Automated Line DGVM-80 SM             (Production 200 Kg/Hour)


Process description:
The dry and clean product is deposited in the hopper of the elevator, which raises and doses to the Separating machine, where the separation and cleaning is carried out by means of a vacuum cleaner that sucks most of the waste.
The separated product then falls to the selection belt, where the manual inspection of the clove is performed.
At the end of the selection belt, a second vacuum sucks the final waste, resulting in a clean and undamaged product.
The automated separate line, allows reduction of labor and time, achieving greater efficiency and profitability in the production.
It is recommended for medium producers, agricultural cooperatives and processing plants in general. ​​

Model DGVM

     Garlic Separating Machine

Description process:
The separate is horizontal by separating rollers and multiple cleaners with controlled speed. The separating rollers begin the separation, it passes to the cleaning rollers where the final separation of the teeth is performed. The clove falls through the discharge channel. The waste is sucked and expelled to the outside. The finished product is undamaged, clean and the process efficiency is 95%.
It is recommended for Farmers and Garlic Processing Plants for peeling.

(2)  DGL-300 Separating Machine

(2) DGVM-80 SM Separating Machine

(3) CS-16 Selection belt

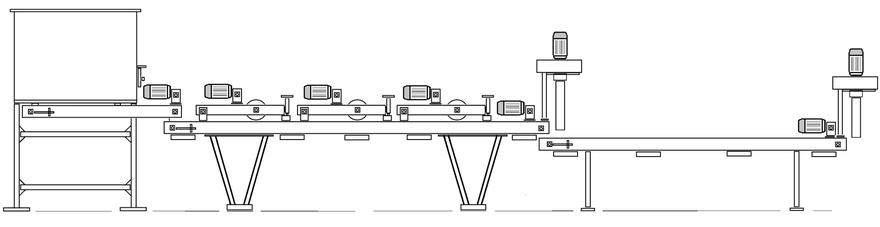

Garlic Separating: Automated Line DGL-300M             (Production 800 Kg/Hour)


Process description:
The dry and clean product is deposited in the hopper of the feeder, which moves it and doses it to the Separating machine, where the separation and cleaning is performed by means of a vacuum cleaner that sucks most of the waste.
Next, the shredded product falls on the selection belt, where the manual inspection of the clove is performed.
At the end of the selection belt, a second vacuum sucks the final waste, resulting in a clean product without damage.
The line of automated separate, allows reduction of labor and time, achieving greater efficiency and profitability in the production.
It is recommended for large producers, agricultural cooperatives and processing plants in general.
​​

​​Recommended
Industrial
OperationElectromechanical
Voltage Available220V 60Hz 1Ph / 220V 50-60Hz 1Ph y 3Ph
ConstructionSteel for machinery
ManufacturingUSA


  • 1 Info no disp Ingles0:05

  • 1 Info no disp Ingles0:05
USA GENERAL GARLIC CORP.
BIENVENIDOS

Peladoras de Ajo – Usa General Garlic Desgranadoras de Ajo

  • 1 Info no disp Ingles0:05
​​Recommended
Industrial
OperationElectromechanical
Voltage Available220V 60Hz 1Ph / 220V 50-60Hz 1Ph y 3Ph
ConstructionSteel for machinery
ManufacturingUSA


AUDIO:

General details

​Garlic Separating Machine Model DGL

(1) EV-8A Dosing Elevator

(3)  CS-20 Selection belt

 Garlic Separating:  Automated Line DGVM-100 SM             (Production 400 Kg/hour)


Process description:
The dry and clean product is deposited in the hopper of the elevator, which raises and doses to the Separating machine, where the separation and cleaning is carried out by means of a vacuum cleaner that sucks most of the waste.
The separated product then falls to the selection belt, where the manual inspection of the clove is performed.
At the end of the selection belt, a second vacuum sucks the final waste, resulting in a clean and undamaged product.
The automated separate line, allows reduction of labor and time, achieving greater efficiency and profitability in the production.
It is recommended for medium producers, agricultural cooperatives and processing plants in general. ​​ ​

AUDIO:

General details

Garlic Separating:

Automated Line DGL-300

AUDIO:

General details

Garlic Separating:

Automated Line DGVM-100 SM

​USA GENERAL GARLIC CORP.

  • 1 Info no disp Ingles0:05
​​Recommended
Industrial
OperationElectromechanical
Voltage Available220V 60Hz 1Ph / 220V 50-60Hz 1Ph y 3Ph
ConstructionSteel for machinery
ManufacturingUSA
